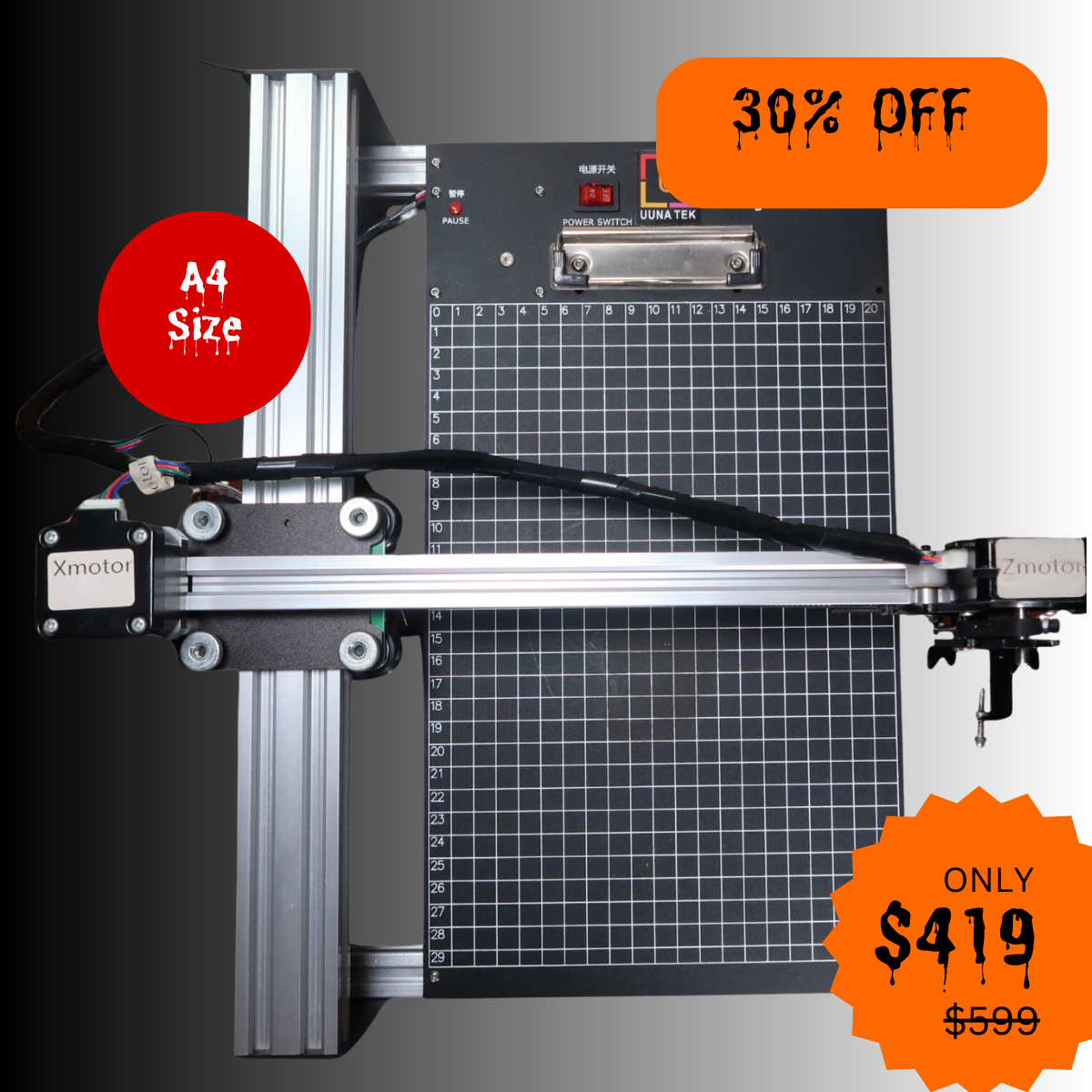

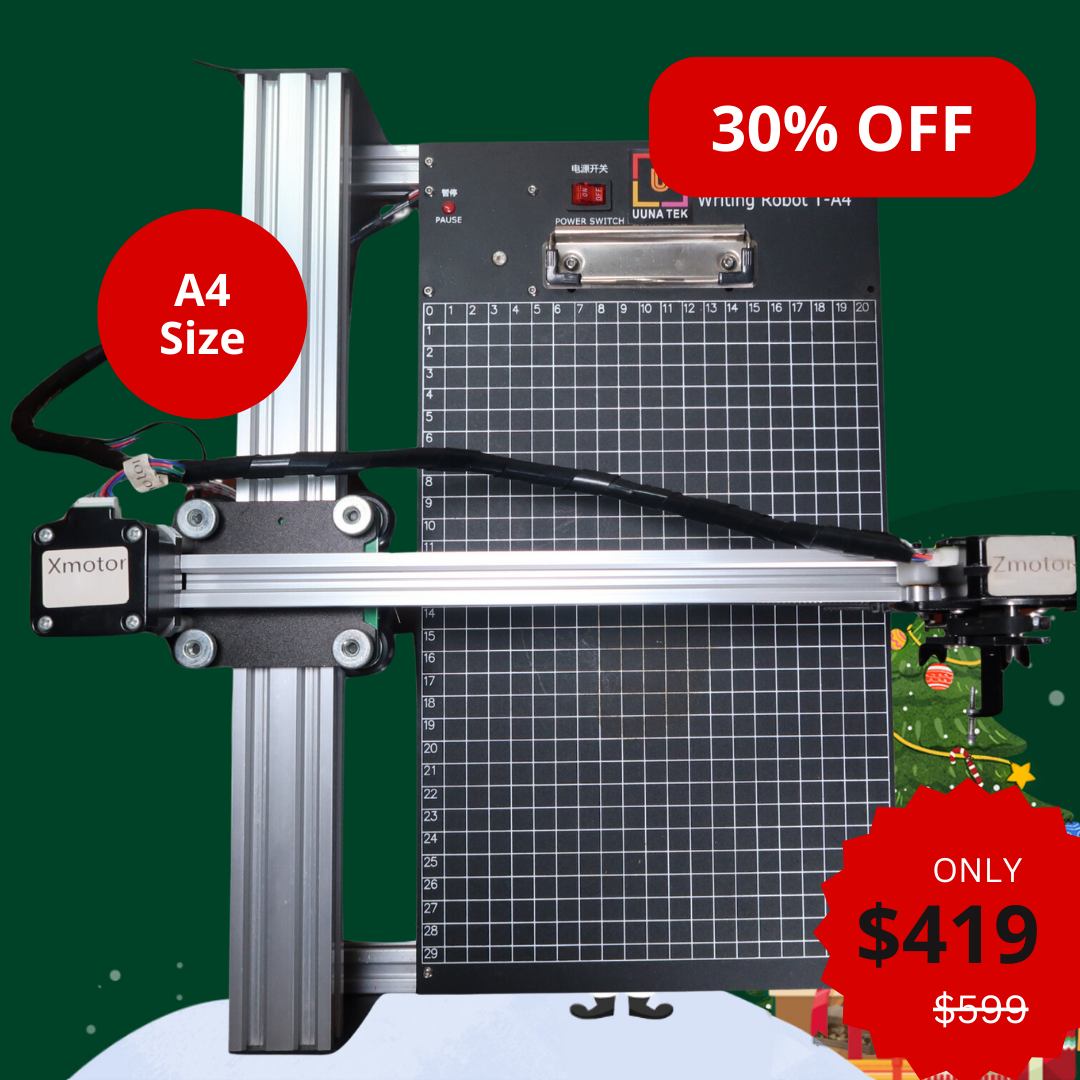

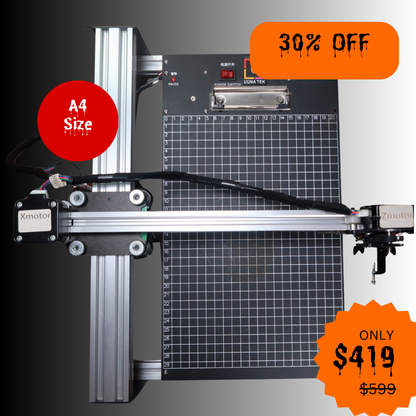

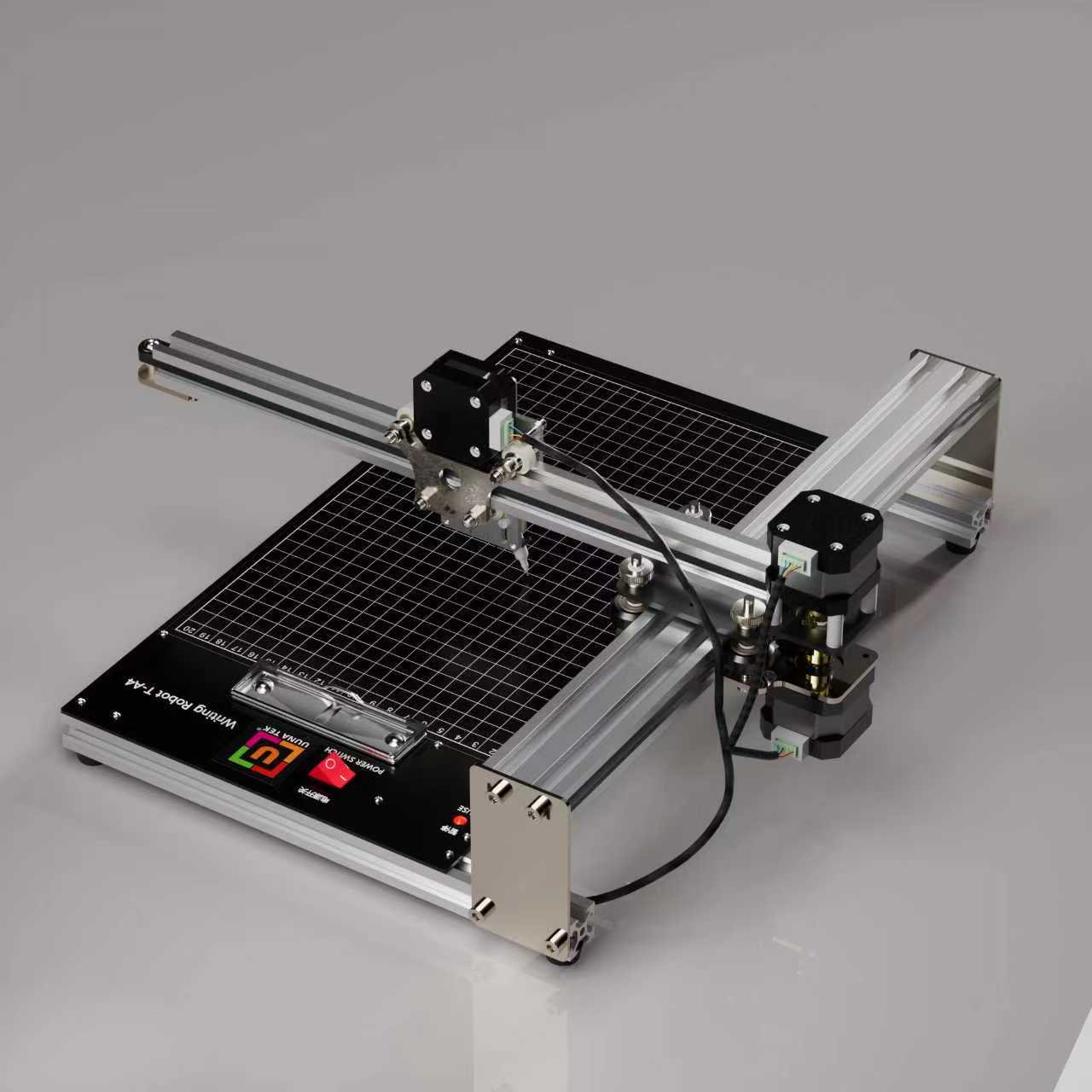

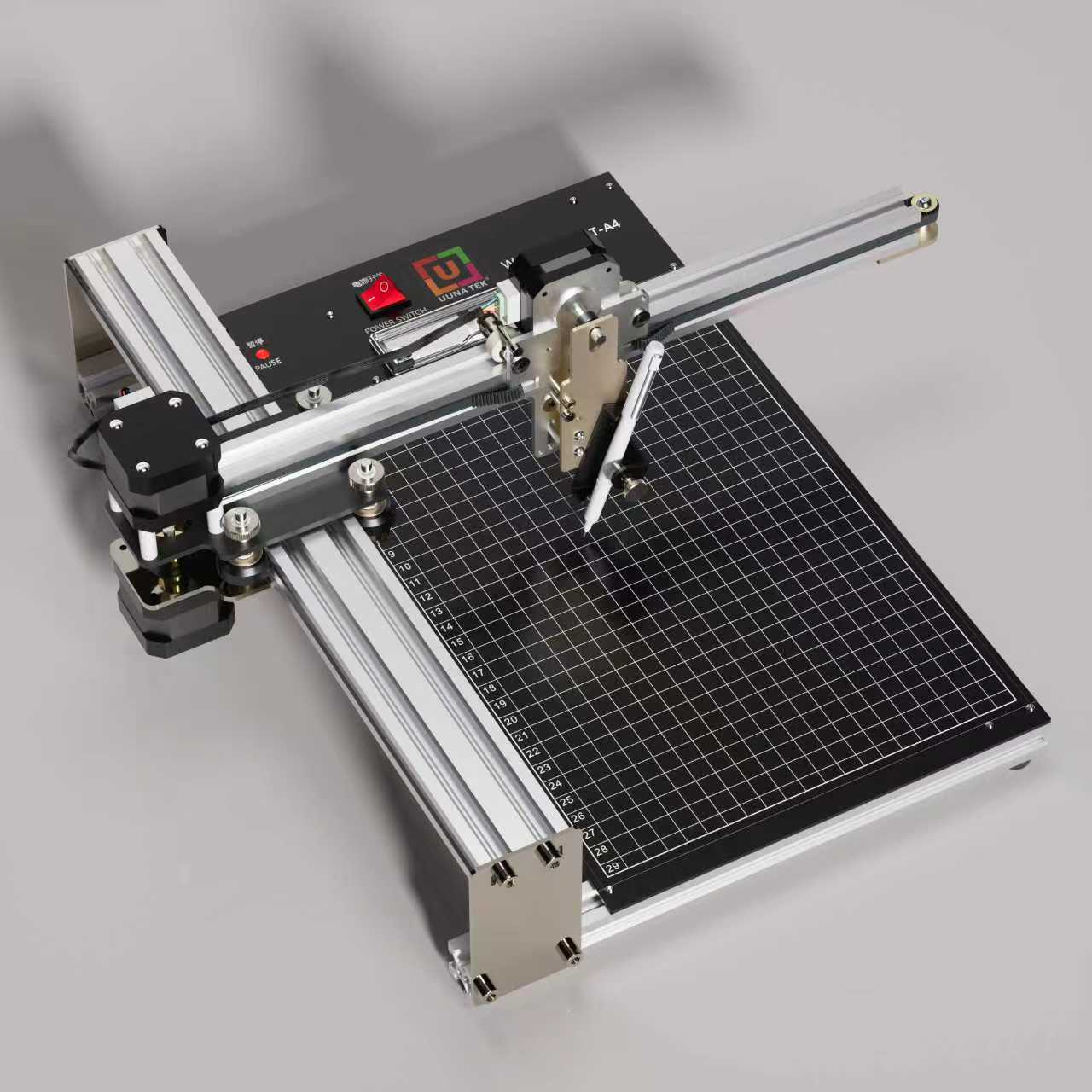

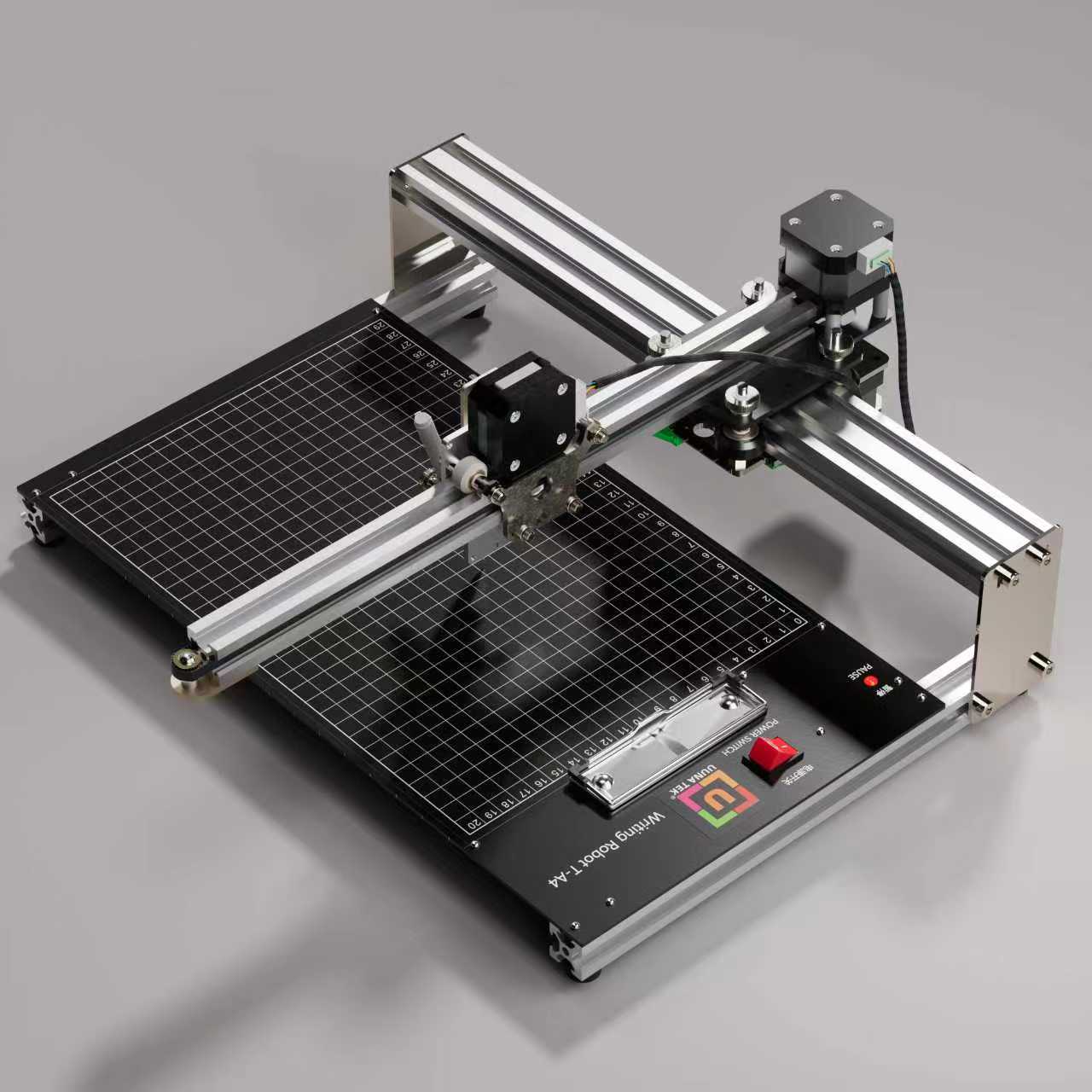

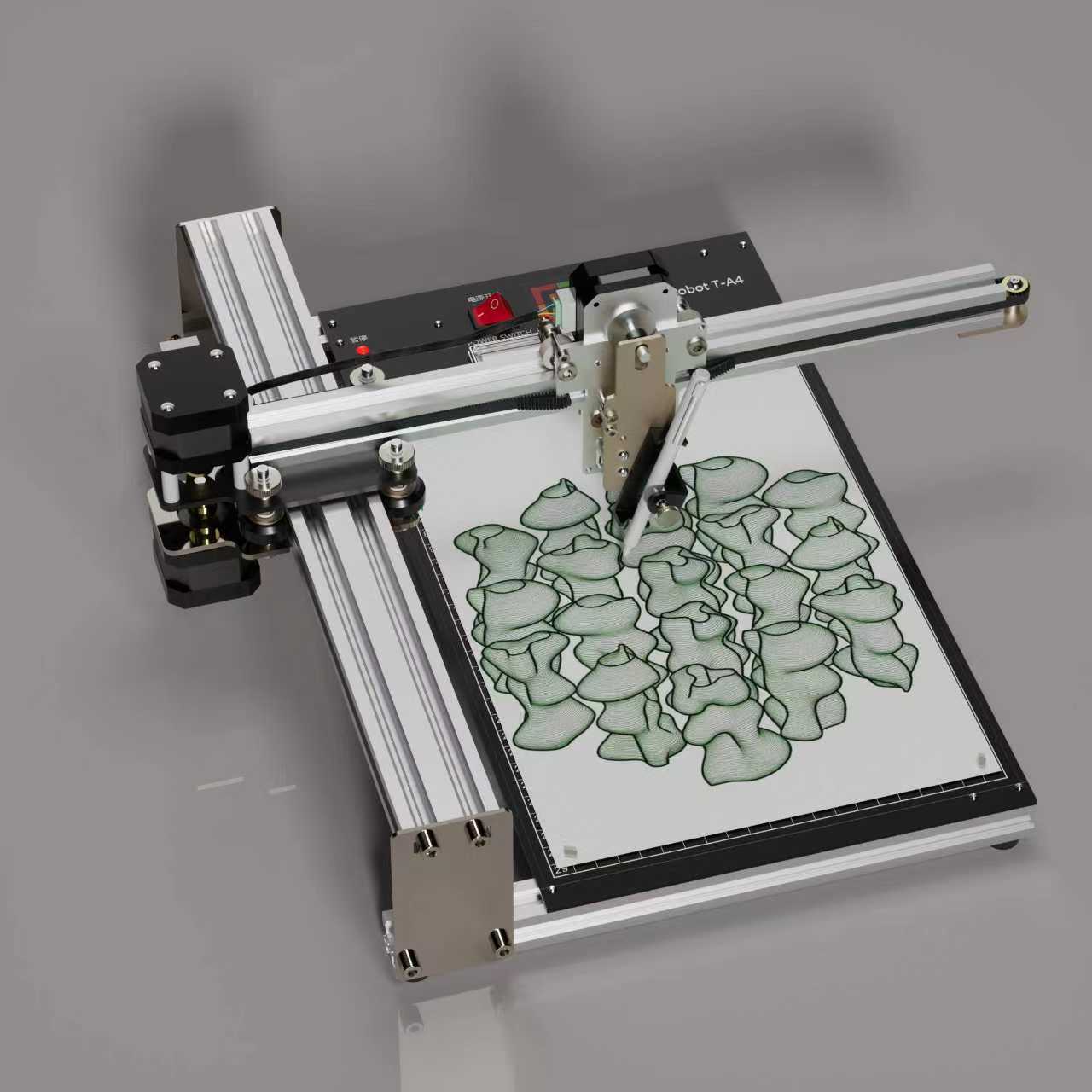

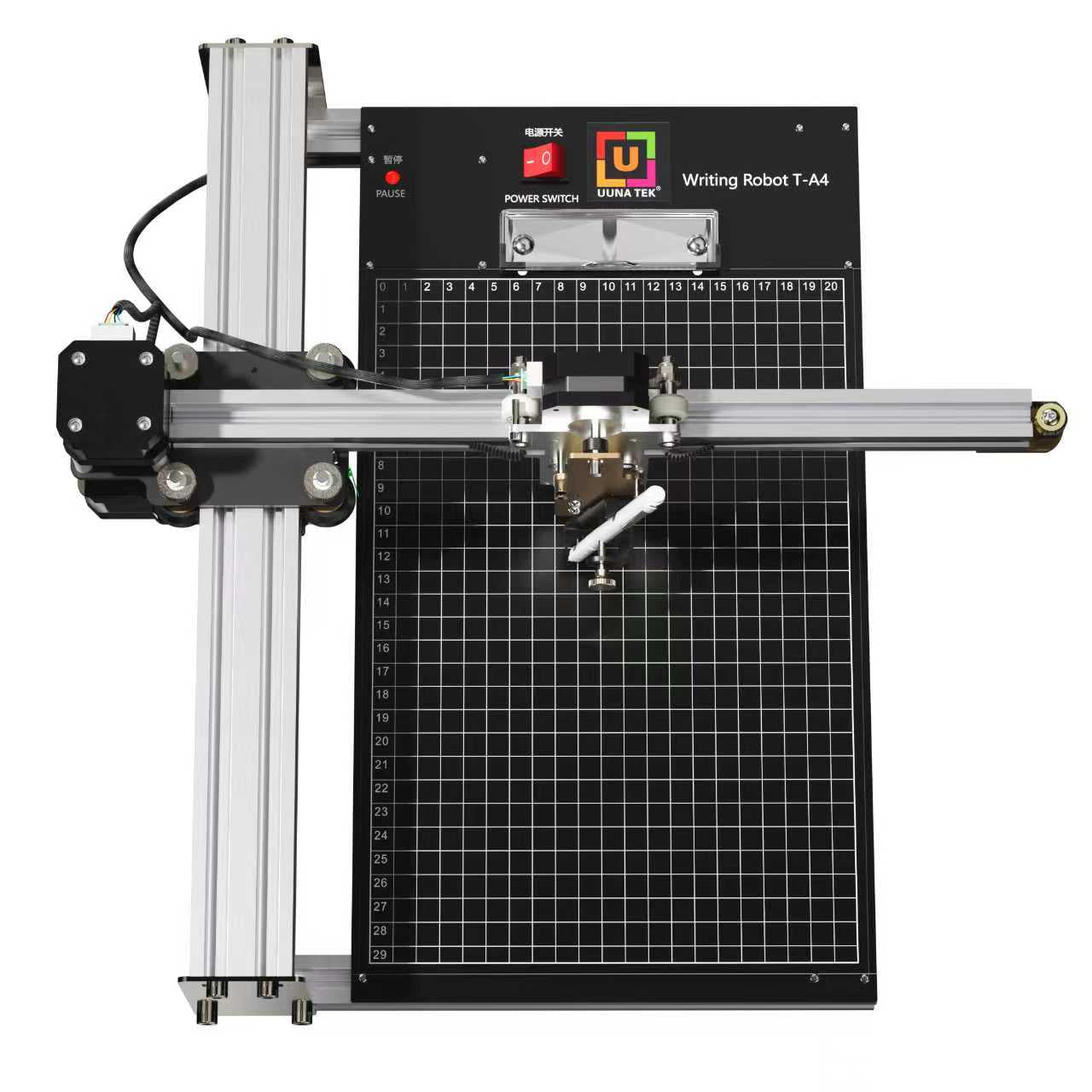

UUNA TEK® iDraw 2.0 - A4サイズの描画ロボット描画マシン、最高のエントリーレベルのペンプロッター
UUNA TEK® iDraw 2.0 - A4サイズの描画ロボット描画マシン、最高のエントリーレベルのペンプロッター
共有
受取状況を読み込めませんでした
クリエイティブなプロジェクトを次のレベルに引き上げる準備はできていますか? UUNA TEK® iDraw 2.0 - A4サイズ描画ロボット/描画マシン/宿題マシン/カリグラフィープロッター/手書きロボット/ペンプロッター/レーザー彫刻機は、あなたのアイデアを正確かつ多用途に形にするように設計されています。アーティスト、DIY愛好家、信頼できるツールを求めるプロフェッショナルなど、この最先端のデバイスは無限の可能性への扉を開きます。

主な特徴
-

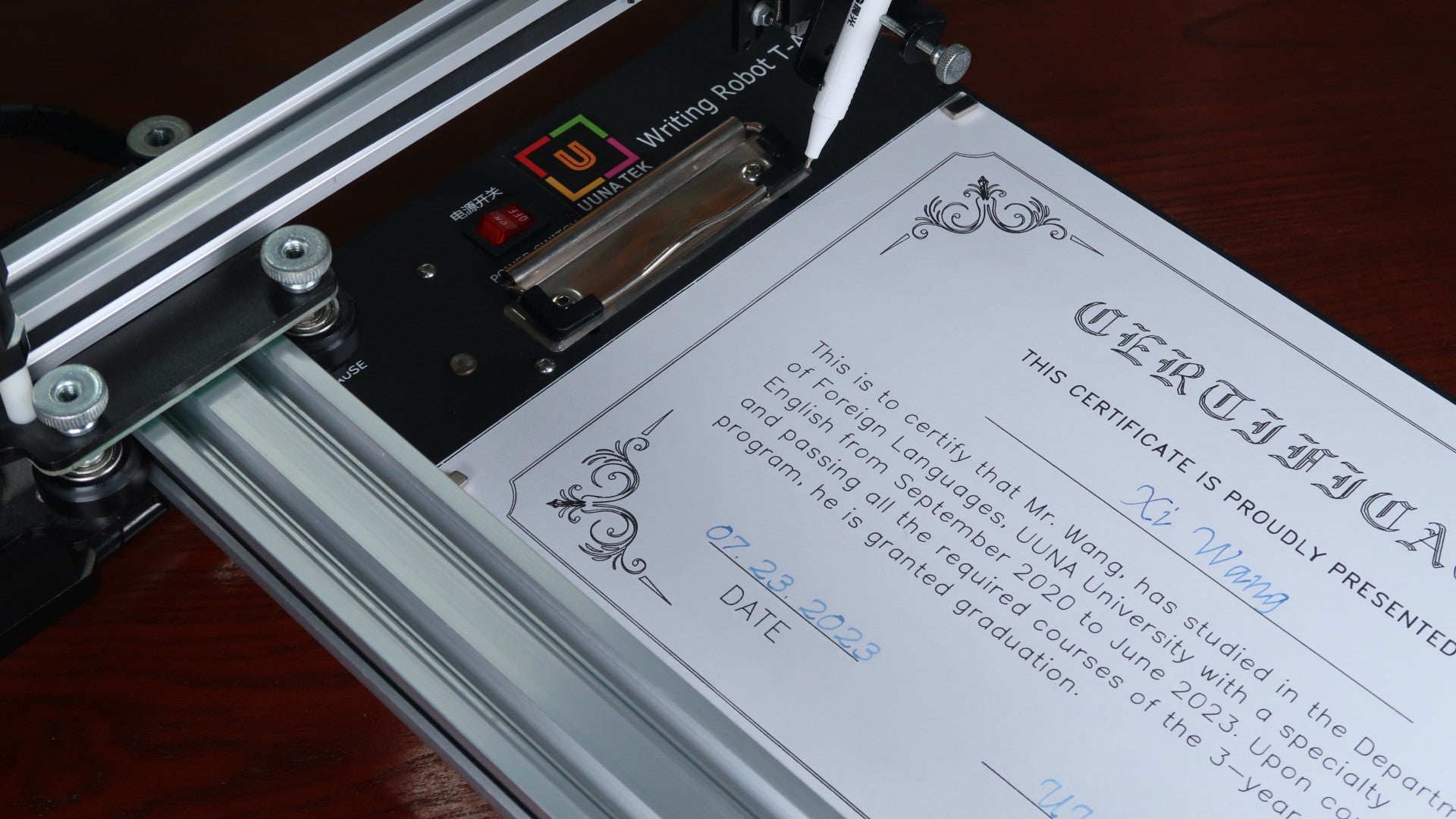

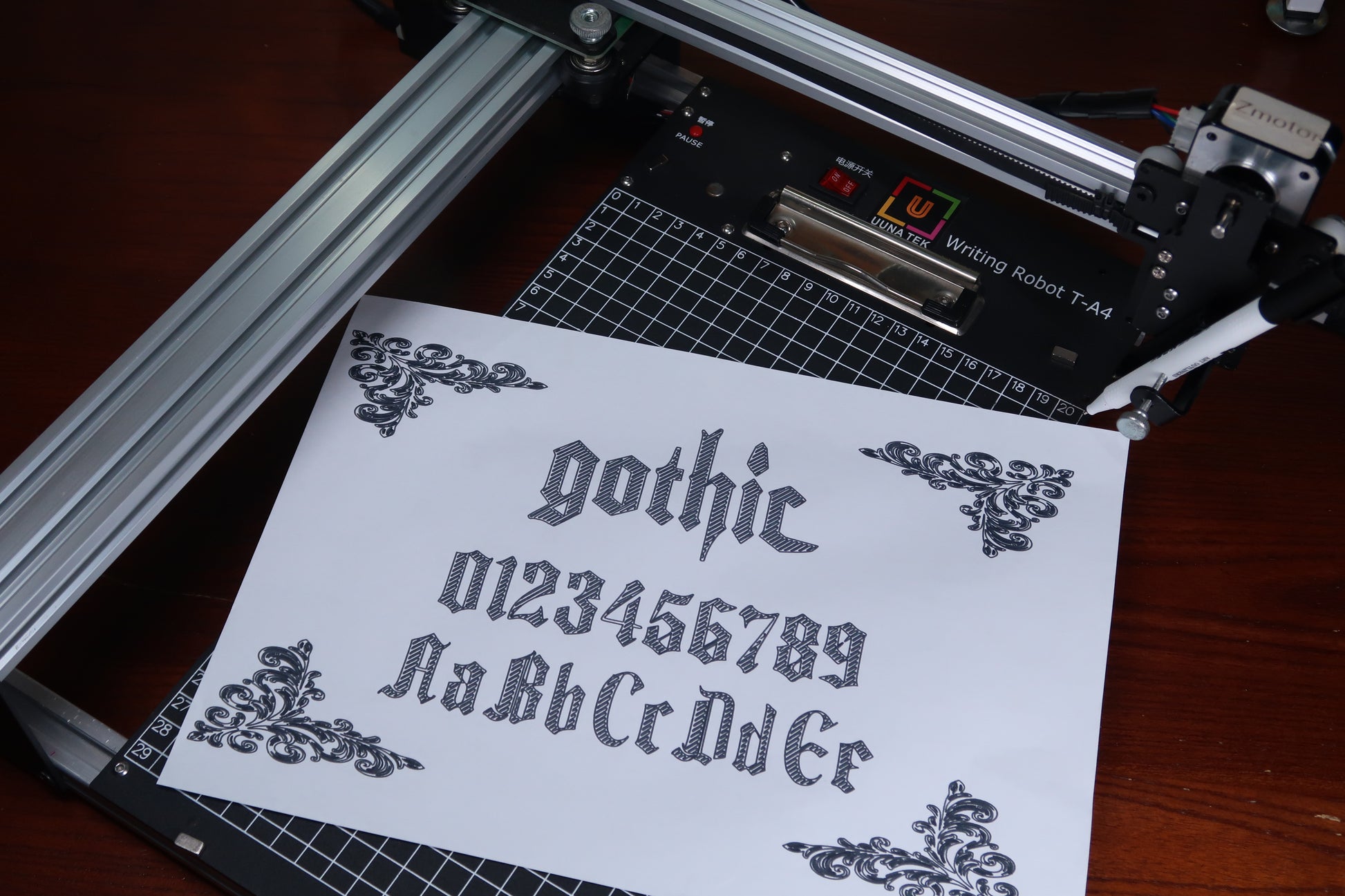

メールのマージとHersheyフォントのサポートで簡単に一括作成

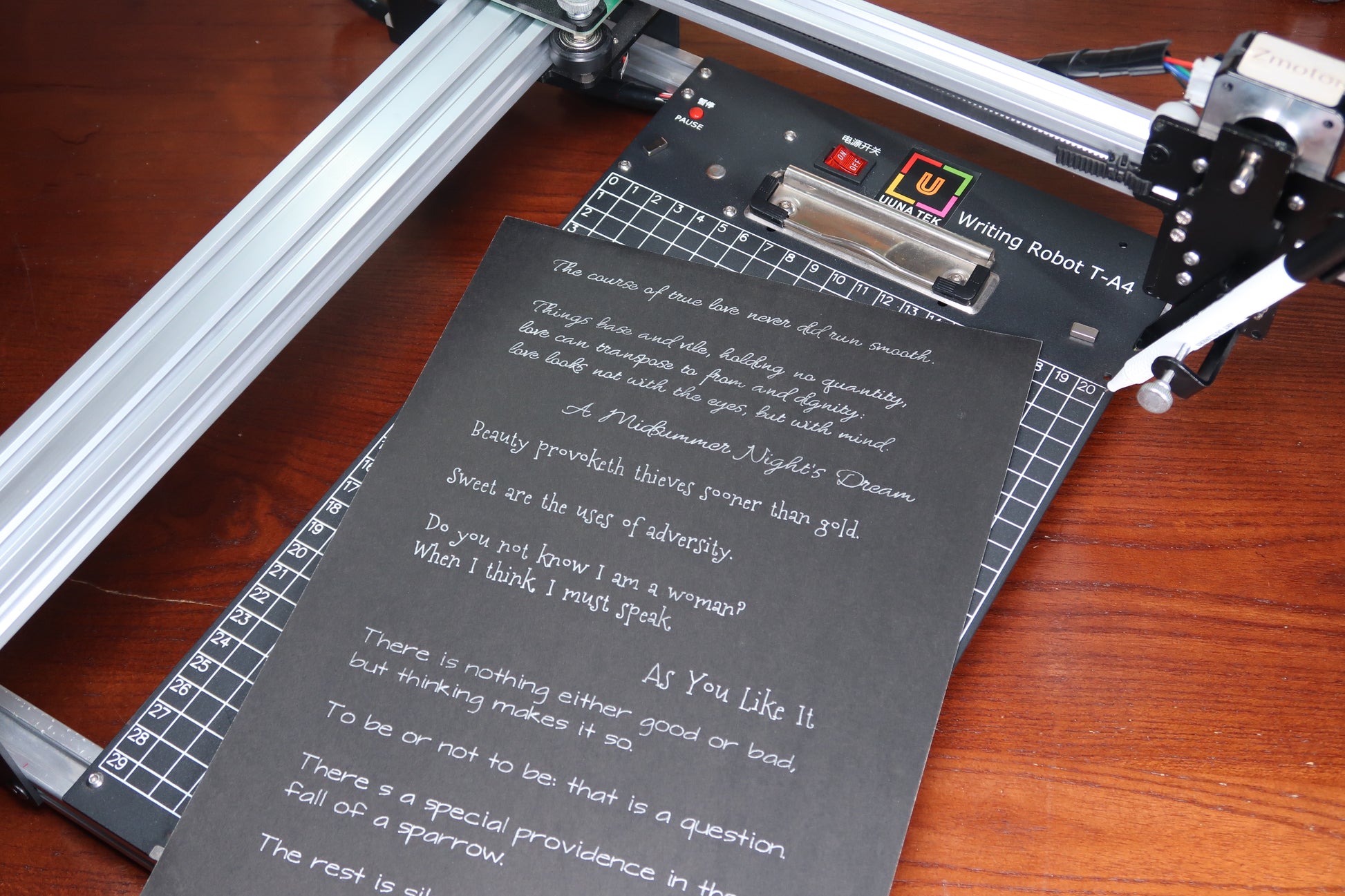

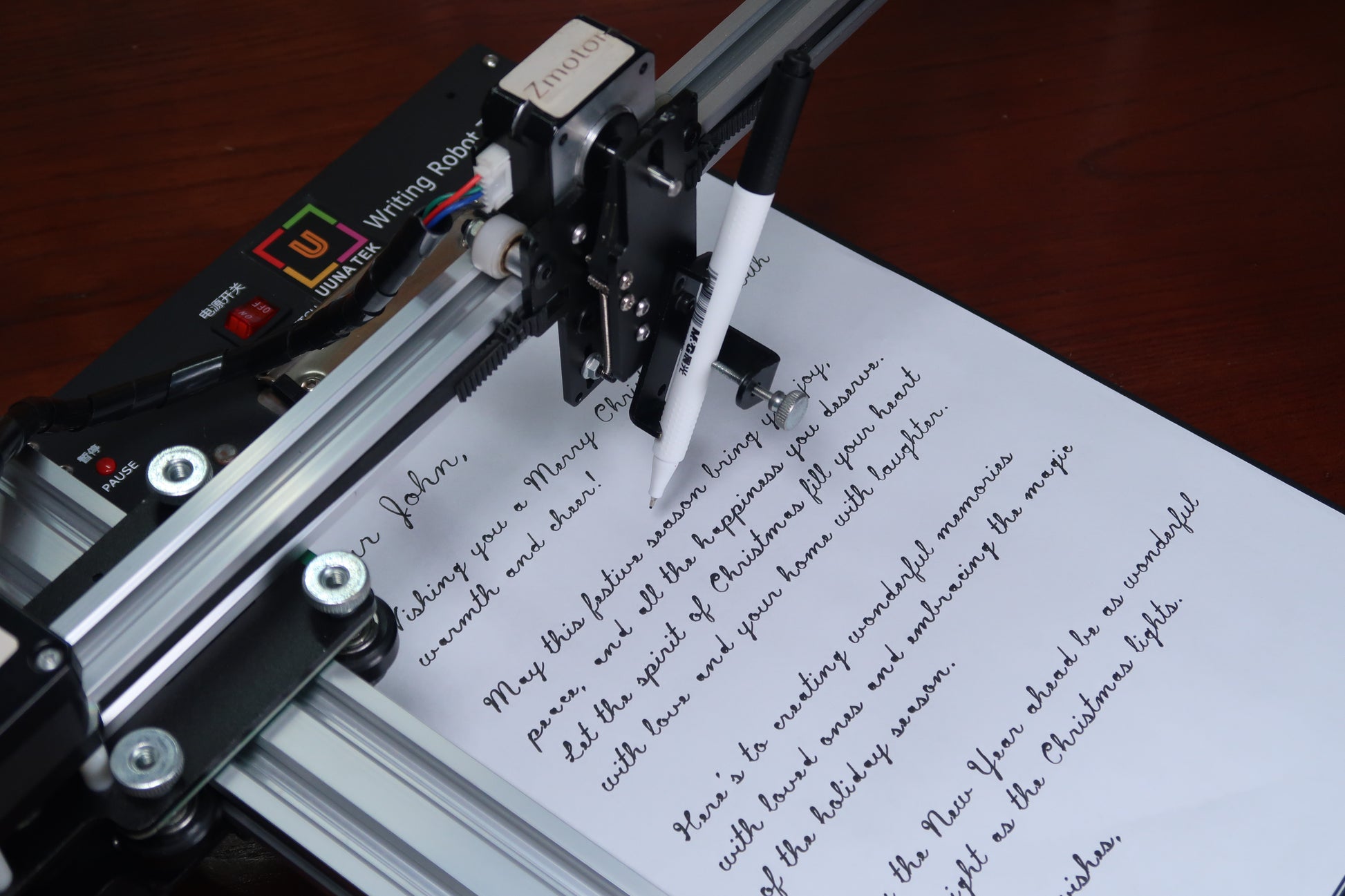

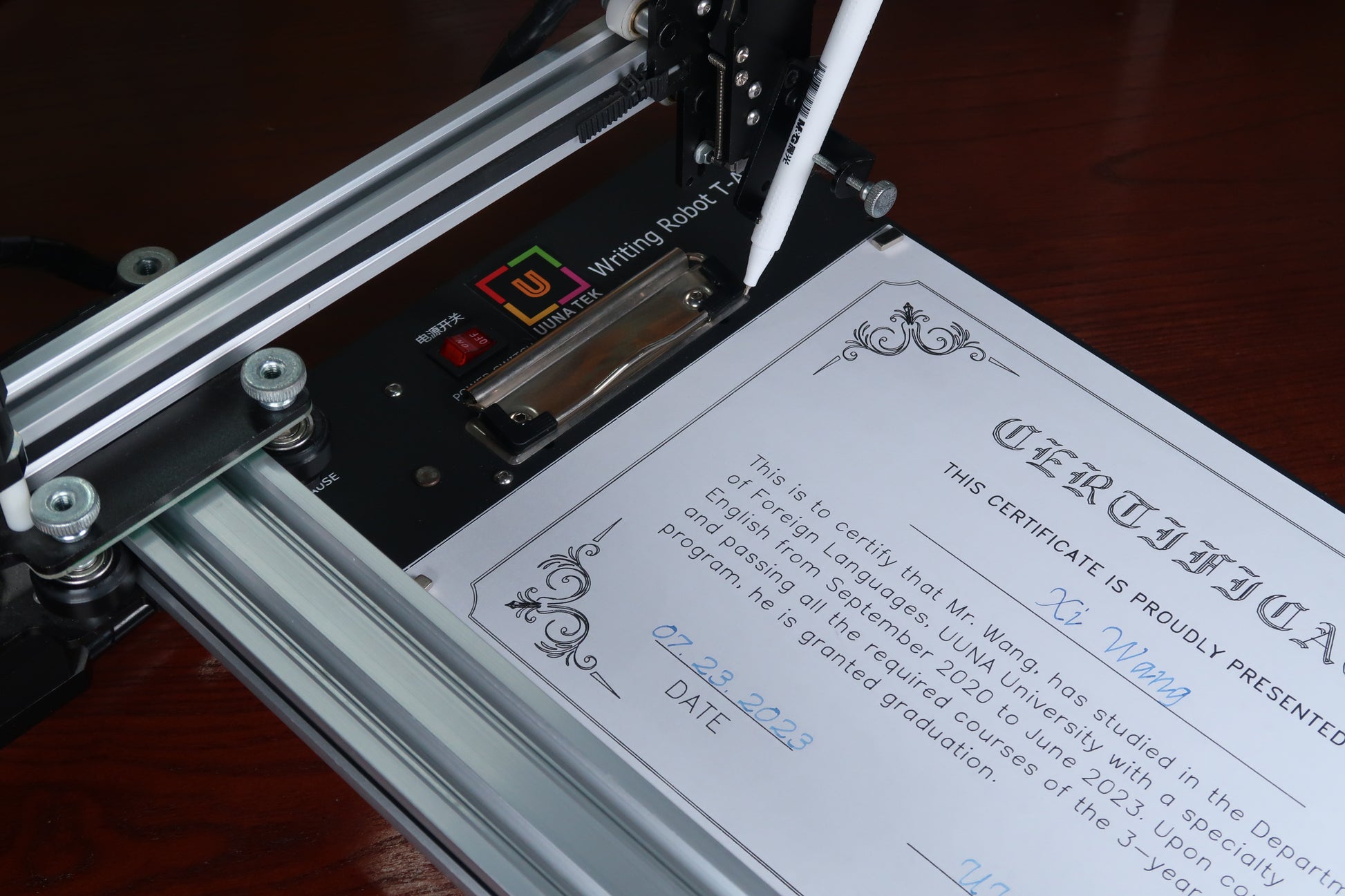

UUNA TEK iDrawペンプロッタはすべて、メール差し込み機能に対応しており、手紙、封筒、カード、招待状などをまとめて作成できます。Hersheyフォントを使えば、人間のような手書き文字を作成できます。
-
スピードの再定義 - 2倍の速さ
当社の最新バージョンは最速の手書きマシンとして、Axidraw と比べて驚異的な 200% の速度向上を誇り、記録的な結果を求める人にとって究極の選択肢となっています。
-
最先端技術

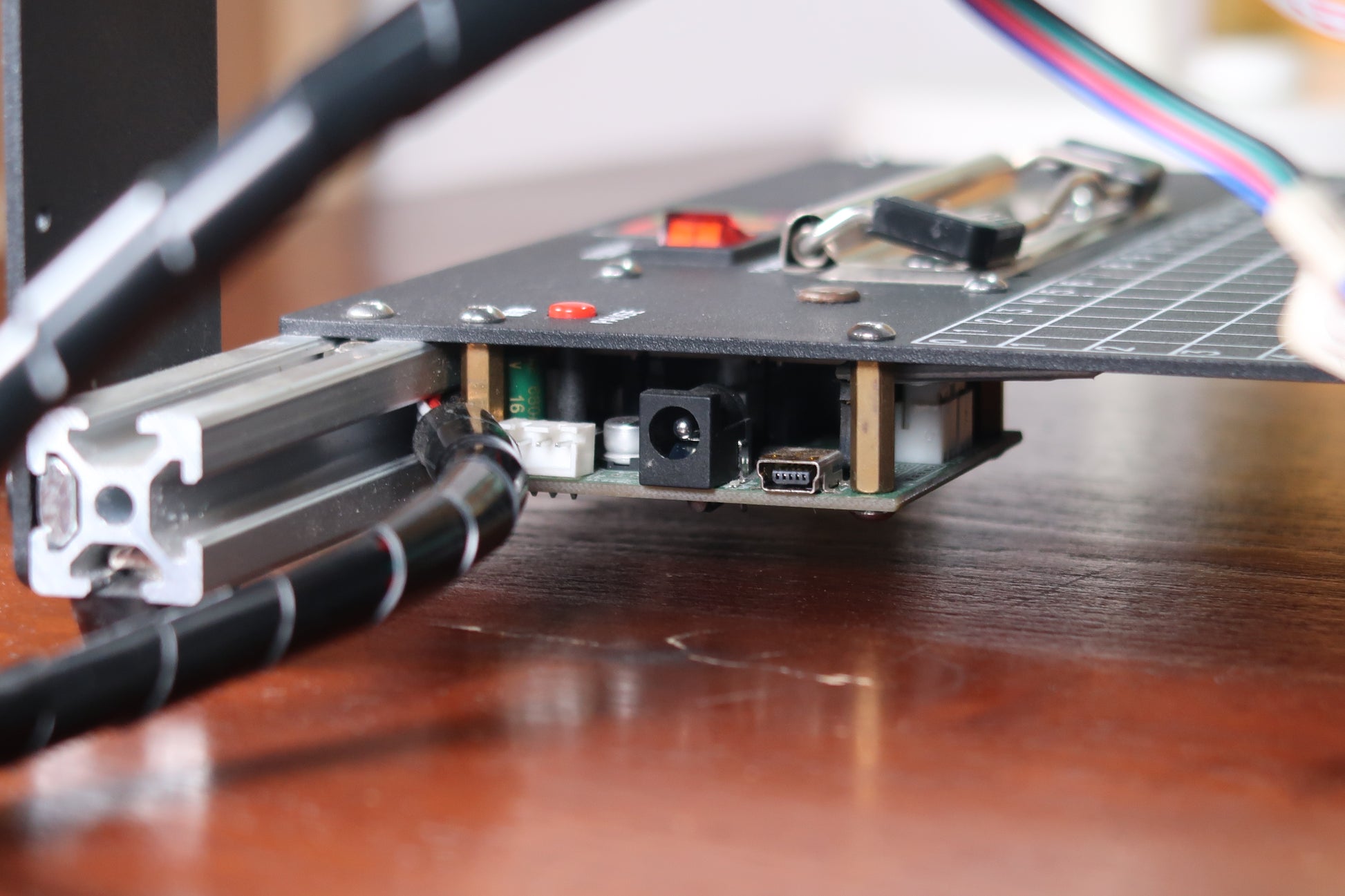

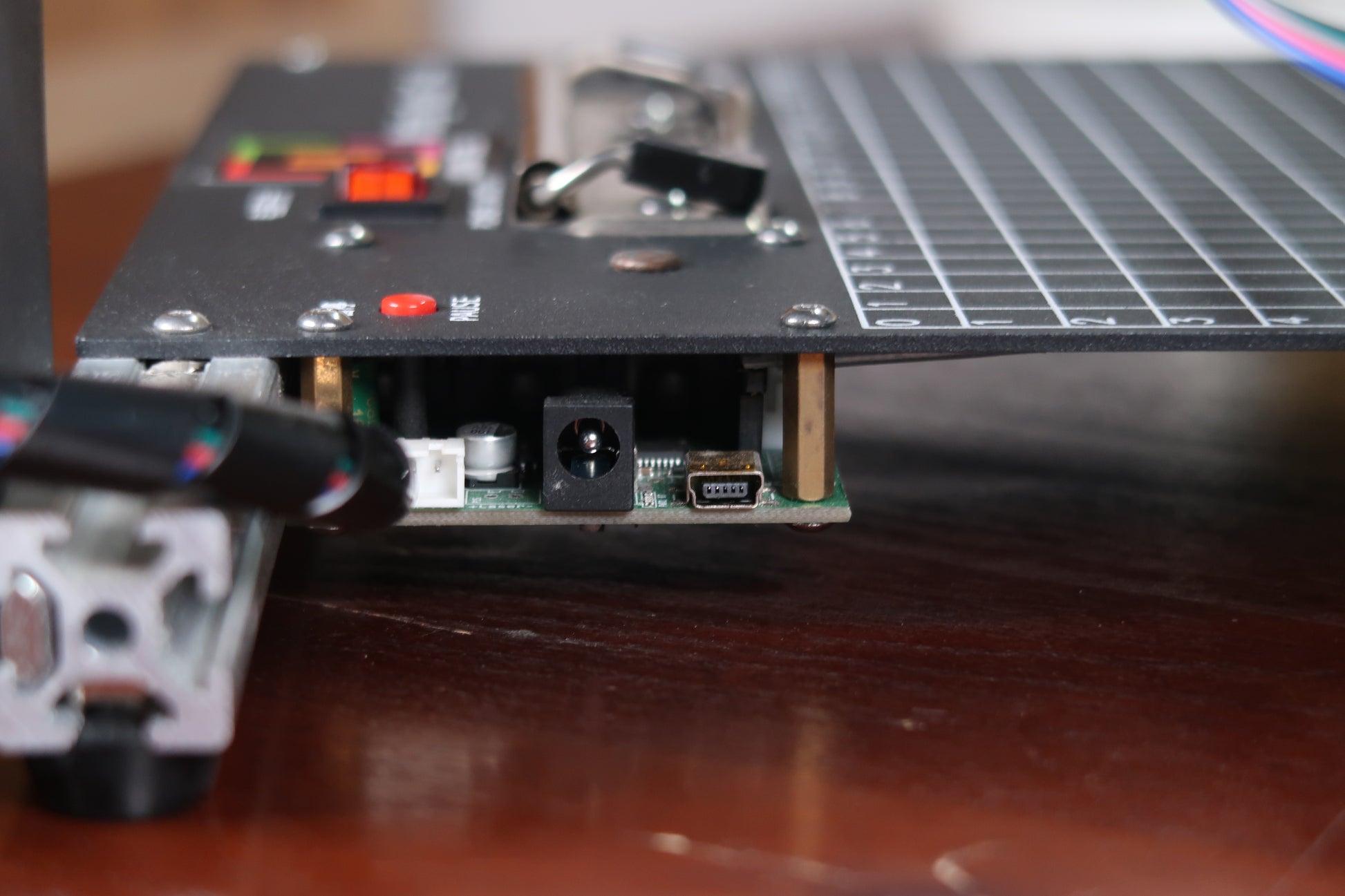

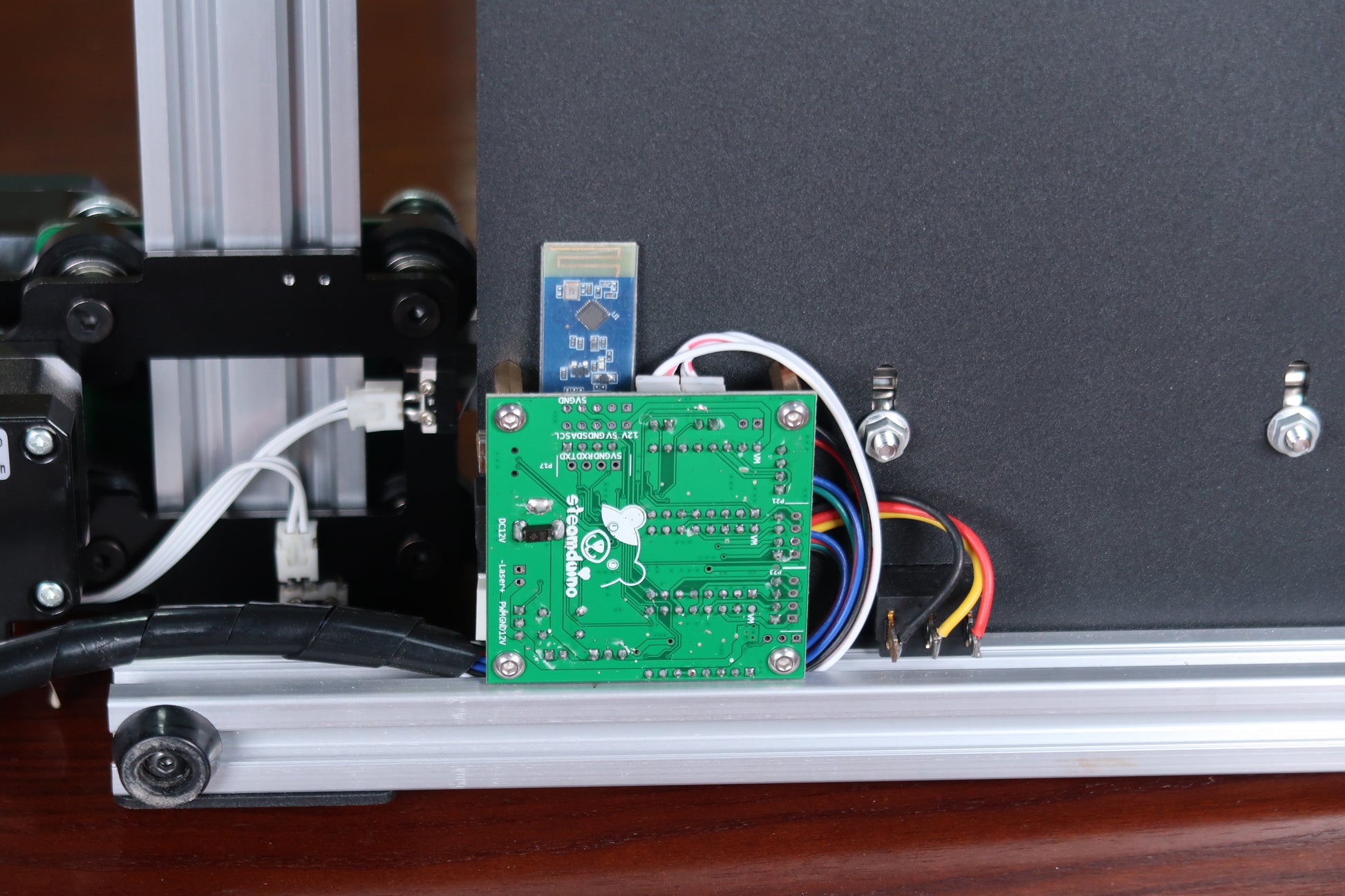

Drawcore V2.0 マザーボードを搭載し、GRBL 互換ファームウェアを搭載したこの製品は、革新の頂点を極めます。
-
計り知れない精度
Y 軸と X 軸の両方で 0.01 mm の最小解像度で完璧な機械的精度を実現し、すべてのストロークが完璧であることを保証します。
-
多用途レーザー彫刻
500mW ~ 2.5W のレーザー ヘッドにより、木材やプラスチックから皮革や紙まで、さまざまな素材に彫刻できます。
-
ユーザーフレンドリーなコントロール
UUNA TEK 2.0 コントロール アドオンを使用して、電力レート、彫刻速度、入力形式をシームレスに管理します。
-
簡単に接続する
USB または Bluetooth 経由で接続し、Windows 7/8/10、Mac OS、Linux などのさまざまなオペレーティング システムとの互換性を提供します。
折りたたみ可能なコンテンツ
仕様
- マザーボード: Drawcore V2.0
- ファームウェア: GRBL 互換性
- アドオン: UUNA TEK 2.0 コントロール

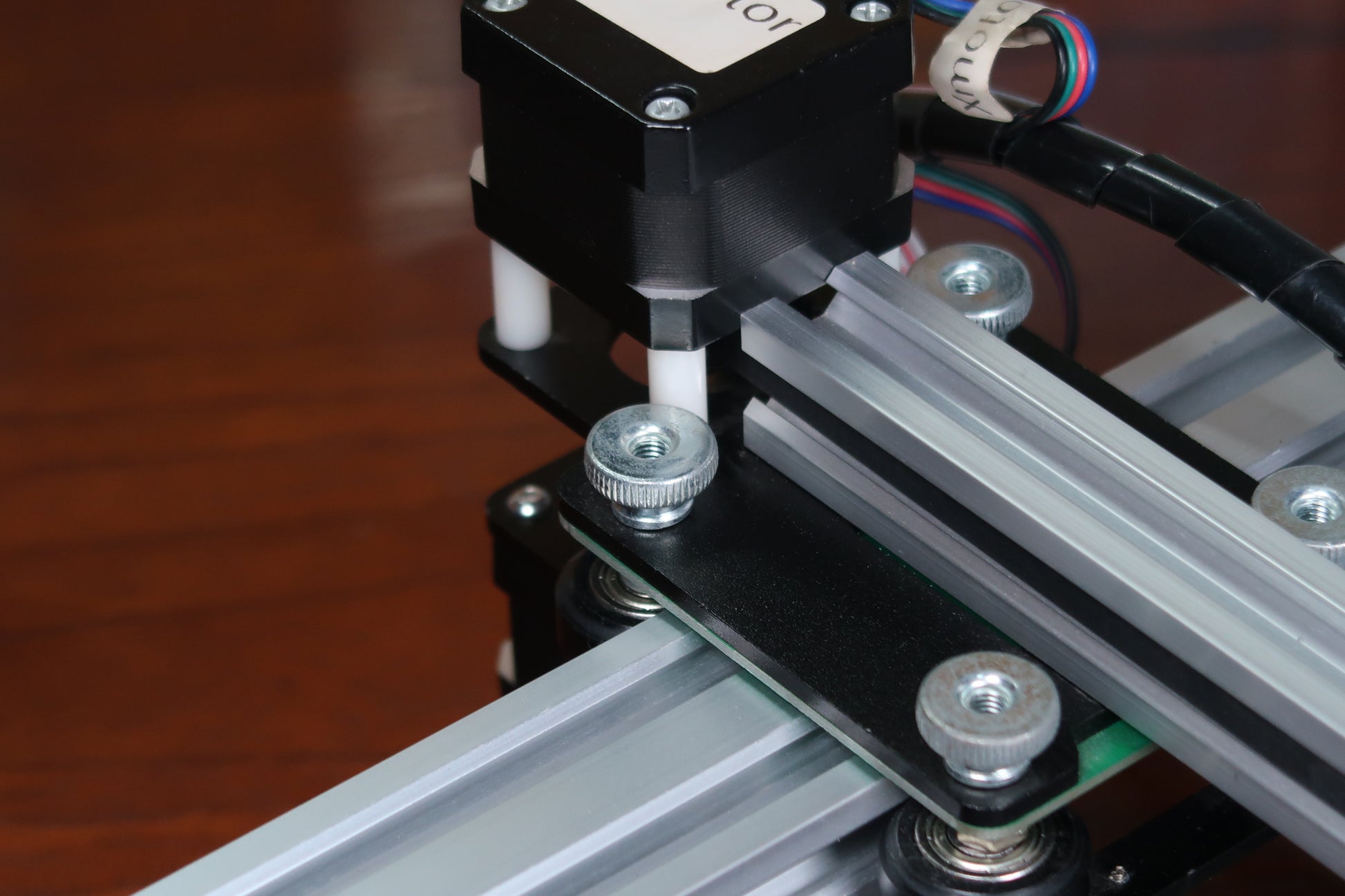

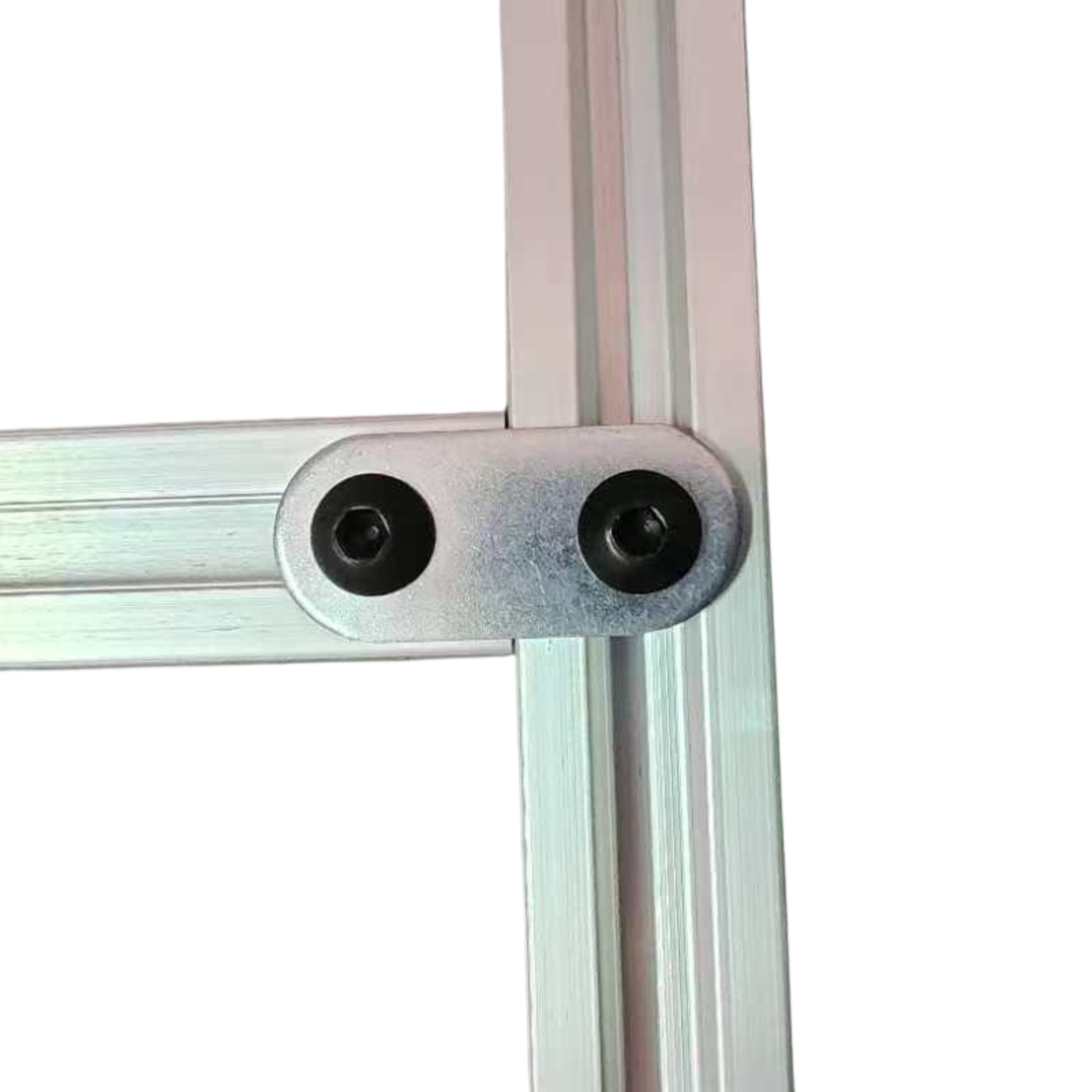

- フレーム材質:アルミニウムプロファイル+スチールプレート
- 作業面積: 210×297mm

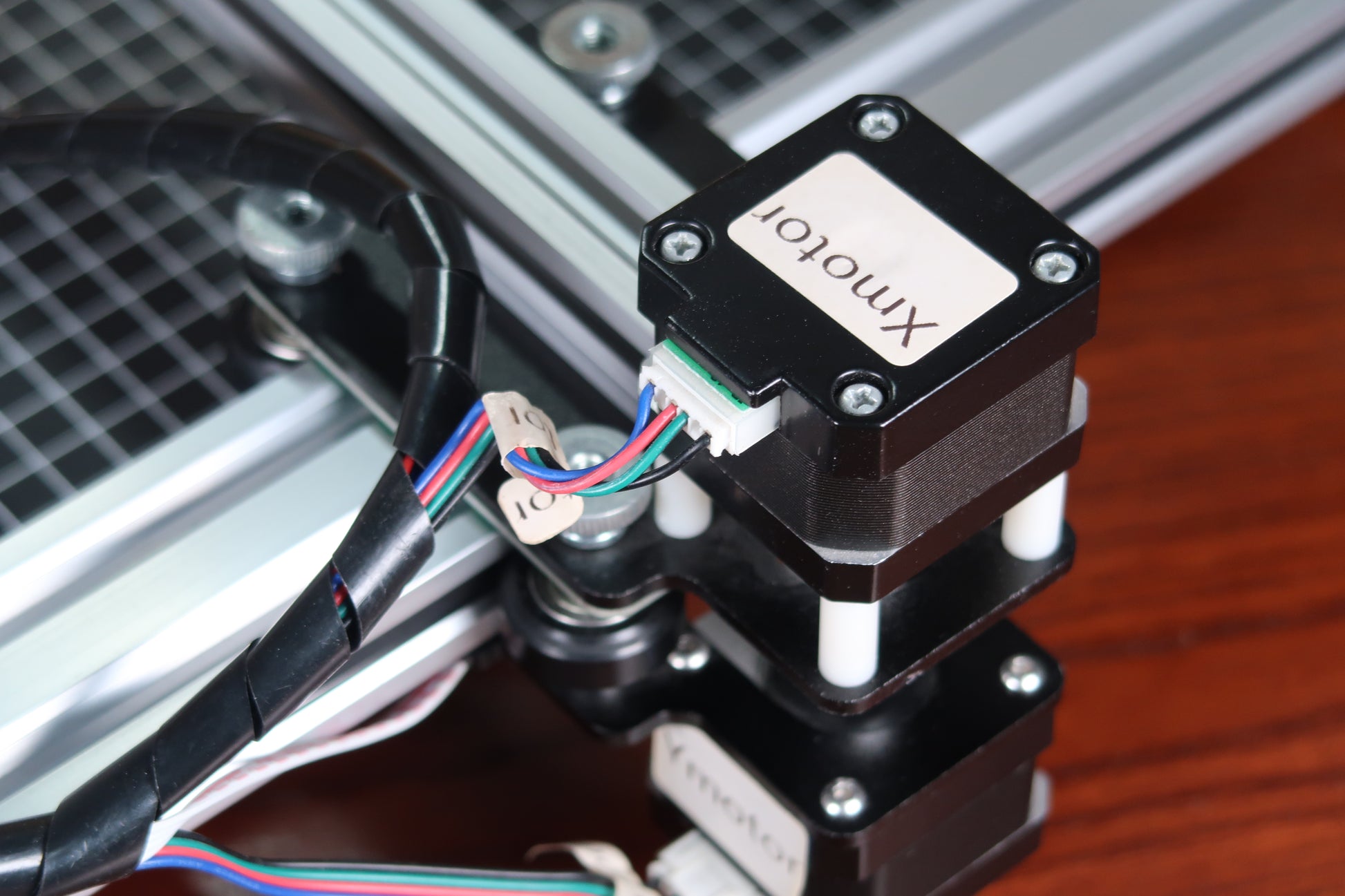

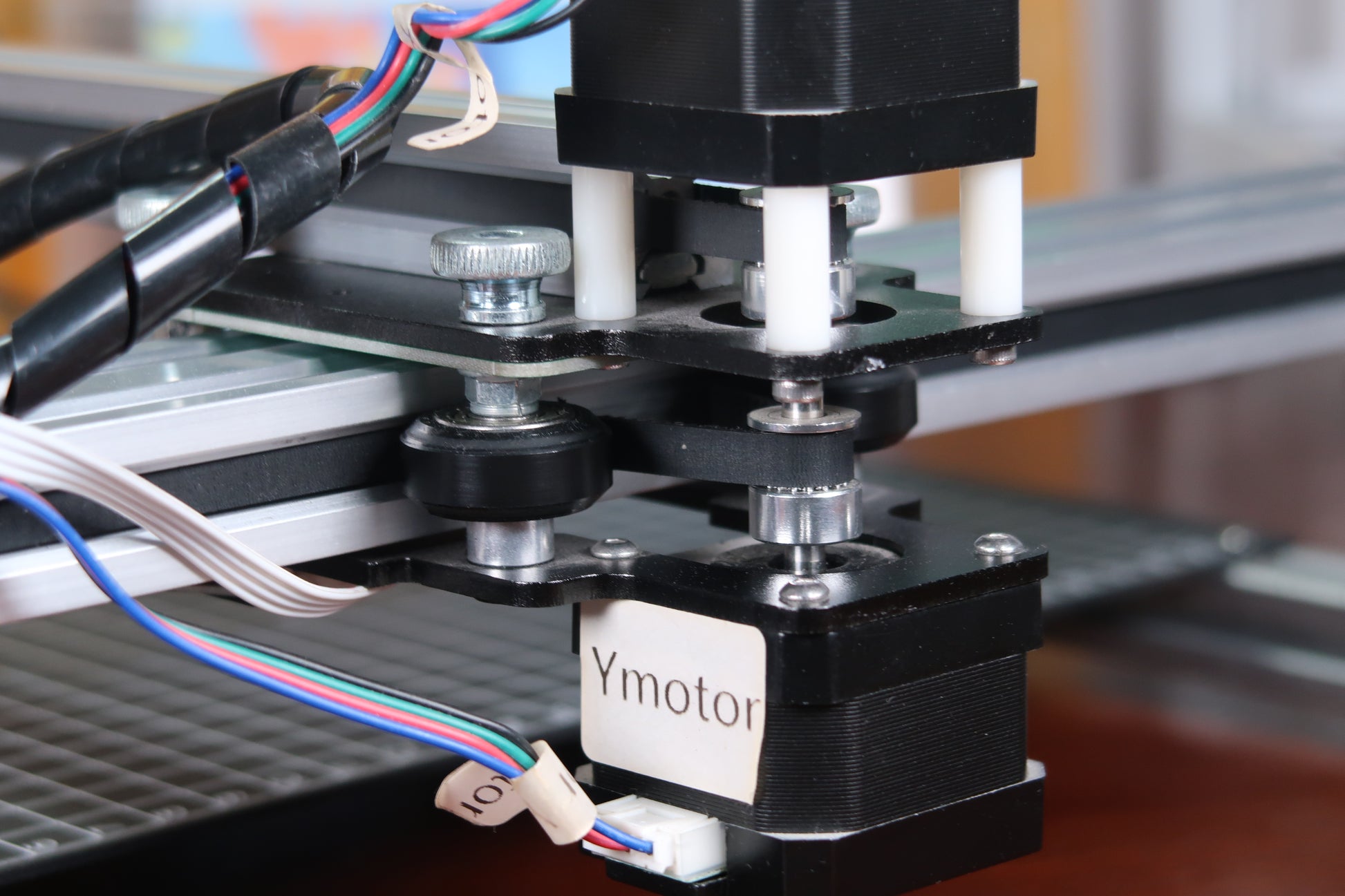

- モーター: 3*42 ステッピングモーター
- 機械精度: Y:0.01mm、X:0.01mm
- レーザー出力: 500mW/1500mW/2500mW
- 彫刻エリア: 210MM×250MM
- 波長: 445±5nm
- フォーカス:固定フォーカス
- 制御モード: PWM
- 電力料金: S0-S1,000
- 彫刻速度: 0~5,000MM/分
- ボーレート: 115200 - 921600 (デフォルト: 115200)
- 入力形式: JPG、JPEG、PNG、BMP、SVG など
- 入力電圧: 110V-220V (互換)
- 電源アダプター出力: 12V / 1A
- 動作温度: -20℃~50℃

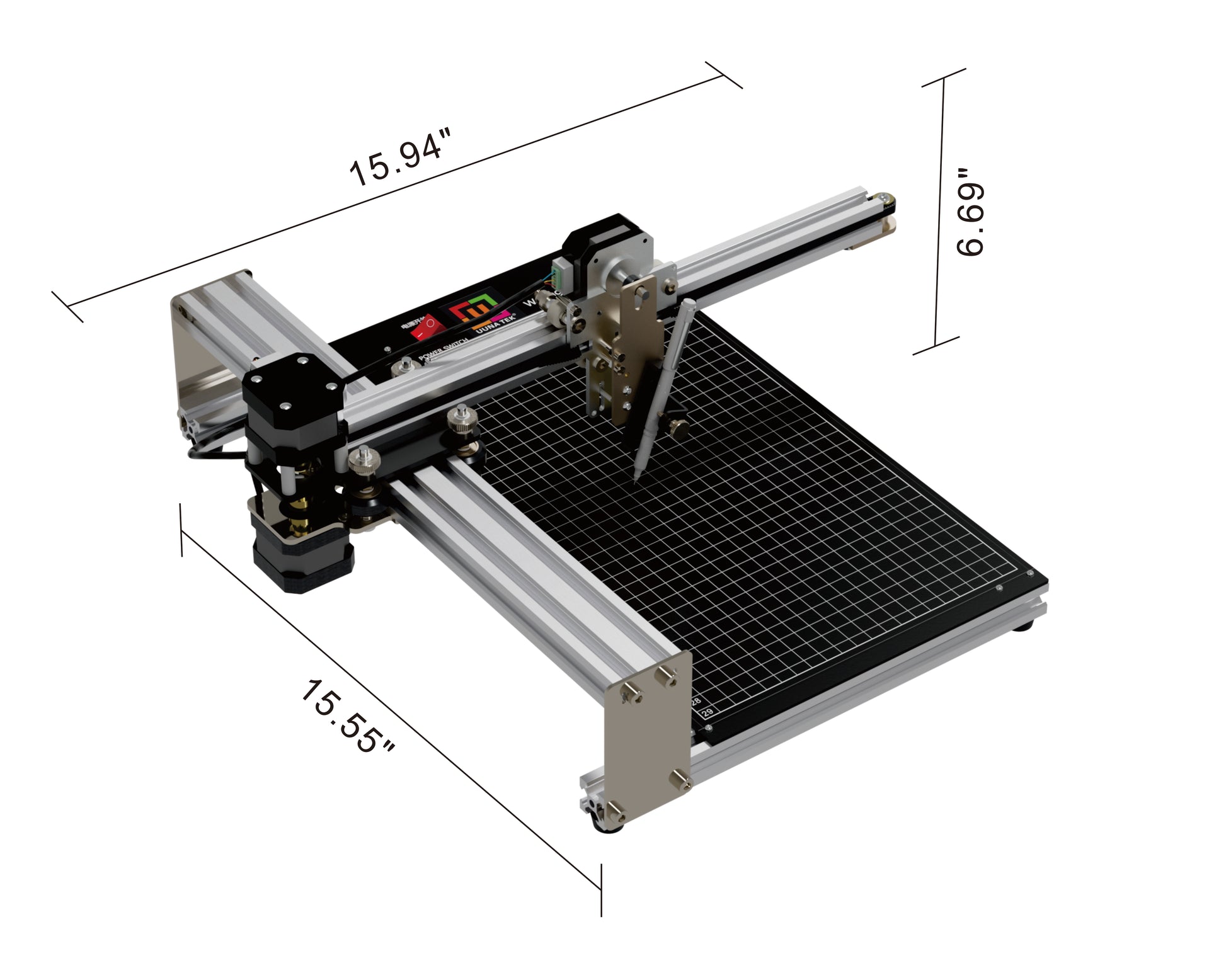

- 製品サイズ: 400*400*160MM
- 正味重量: 4kg
- 限定スイッチ: Y
- ペンの角度調整可能: 70~90度
- 接続: USB、Bluetooth
- 対応OSおよびソフトウェア: Windows 7/8/10(Inkscape)、Mac OS (Inkscape for Writing and Drawing、Lightburn for Laser Engraving)、Linux
包装内容明細書
1 X UUNA TEK iDraw 2.0 A4 ペンプロッター

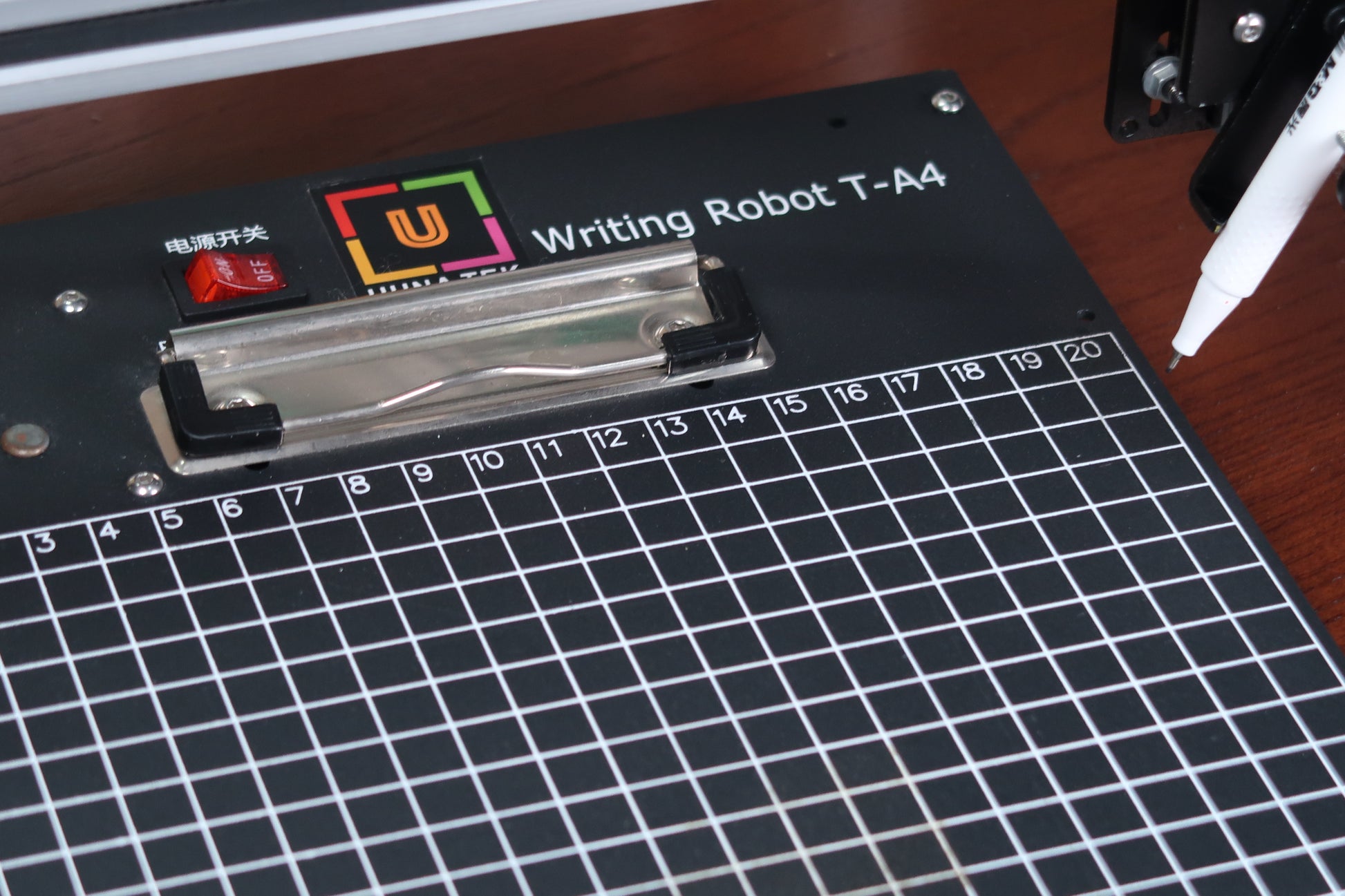

A4ベースプレート1枚
ツールキット1個
クイックスタートガイド x 1
サンキューカード1枚
ソフトウェア
inkscape ソフトウェアと詳細なファイルをここからダウンロードしてください>>>。
Windows、Mac、Linux 用のソフトウェアのほか、ハードウェアの組み立てガイドやソフトウェアのインストール詳細も見つかります。
高度な機能が必要な方へ:
1. プロットファイルを保存する機能が必要な方は、こちらのバージョンをダウンロードしてください>>>
2. メールのマージ機能が必要な方は、
Windows: このバージョンをダウンロードしてください>>>
Mac または Linux の場合は、このバージョンをダウンロードしてください>>>
3.レーザー機能が必要な方はこちらのバージョンをダウンロードしてください>>>
4. 基本的なプログラミングスキルがあり、速度制限を破るために元のパラメータを調整したい場合はどうすればいいでしょうか?こちらのバージョンをダウンロードしてください>>>
チュートリアル
UUNA TEK 1.0 ペンプロッターについては、 こちらのビデオチュートリアルをご覧ください>>>
UUNA TEK 2.0 ペンプロッターについては、 こちらのビデオチュートリアルをご覧ください>>>
UUNA TEK H ペンプロッターについては、 こちらのビデオチュートリアルをご覧ください>>>
ソフトウェアについてはこちらのビデオをご覧ください>>>
レーザー機能については、 こちらのビデオチュートリアルをご覧ください>>>
よくある質問
iDraw 2.0 A4 プロッタに適切な図面サイズを設定するにはどうすればよいでしょうか?
iDraw 2.0 コントロール拡張機能に移動し、[オプション] -> [構成] -> [iDraw モデル: iDraw A4] を選択します。
自動ホーム機能がうまく動作しないのはなぜですか?
Auto Home を使用する際のヒントをいくつか紹介します。

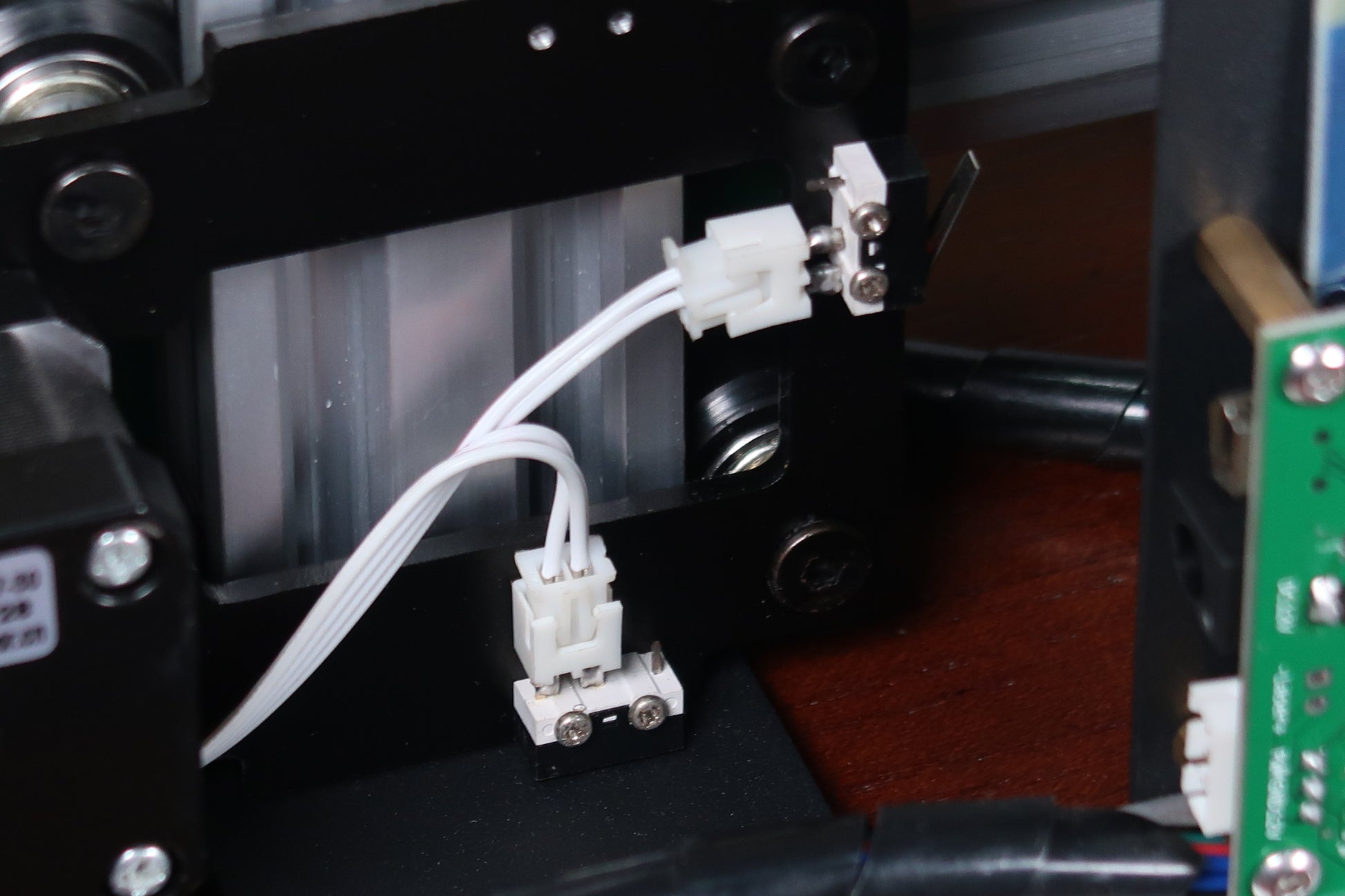

1. コンタクトスイッチケーブルが正しく接続されていることを確認します。次のガイドに従ってください: https://www.youtube.com/watch?v=5B4nb2k6eAc
2. X軸トロリーを手動で左に最大限まで動かし、X軸接触スイッチに当たるかどうかを確認します。
3. Y軸トロリーを手動で後方に最大限移動し、Y軸接触スイッチに当たるかどうかを確認します。
4. ケーブルが XY トロリーに引っかからないように適切に配置されていることを確認します。Z 軸ケーブルを整理するには、このガイドを確認してください: https://www.youtube.com/watch?v=LTwPYPh3rdE
赤いボタンを押して機械が停止した場合はどうすればよいですか? プロットを再開できますか?
はい、赤い緊急停止ボタンを押せば作業を再開できます。ボタンを押すと、機械は一時停止し、次の指示を待ちます。続行するには:
- Inkscapeソフトウェアを開きます。
-
拡張機能メニューに移動します。
-
履歴書セクションを見つけます。
- 最初から再開するか、停止した時点から続行するかに応じて、[再開 (ホームから)]または[再開 (一時停止した場所から)]を選択します。
👉ヒント:図面の重複や不完全な表示を避けるために、プロジェクトの進行状況に基づいて適切な履歴書オプションを必ず選択してください。

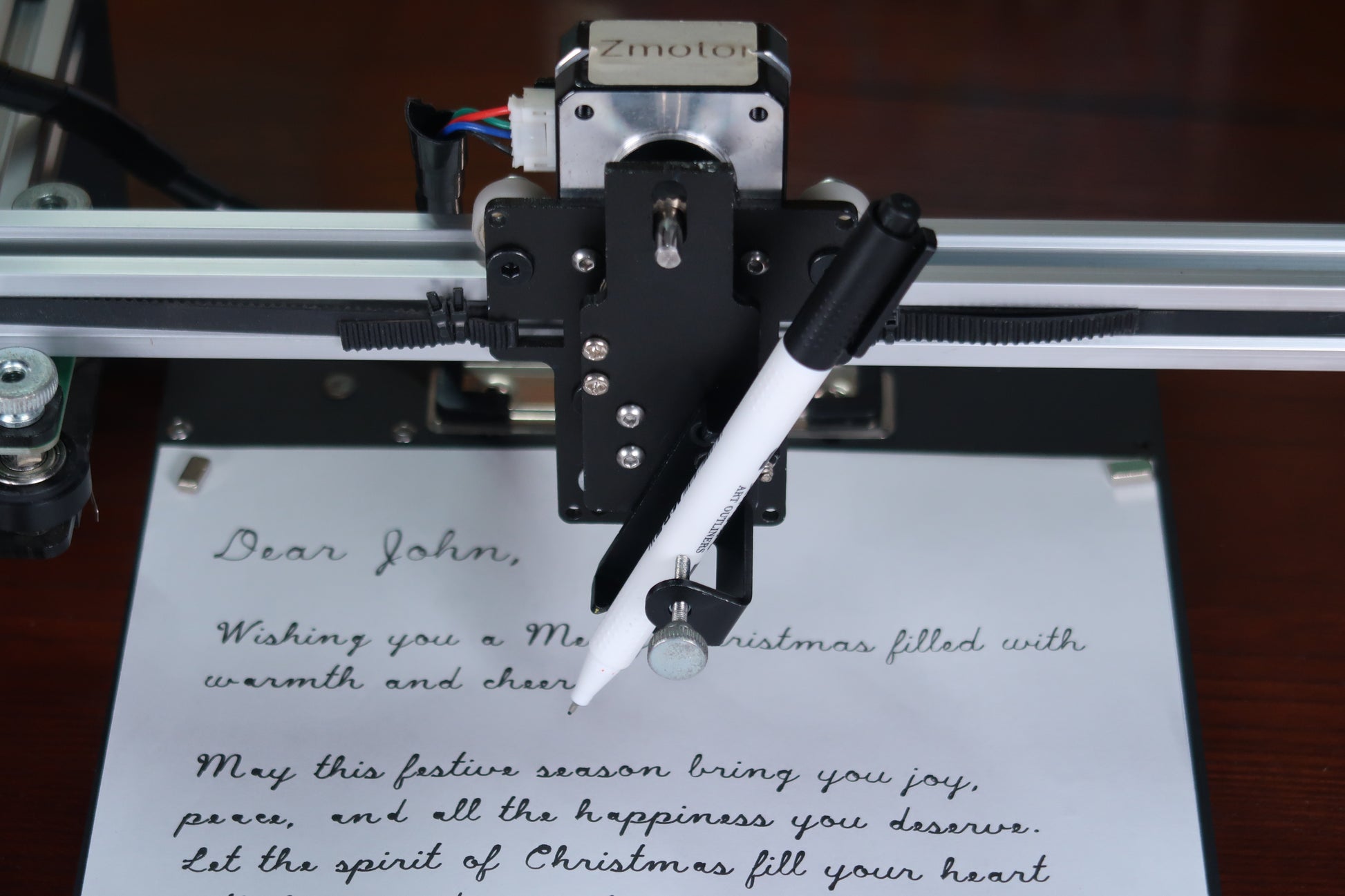

Z軸で動作距離を調整できますか?
はい、Z軸は動作距離を0~10mmの範囲で調整できます。
ペンダウン時間を制御できますか?
はい、ペンダウン時間を制御できます。
マシンは G コード コマンドをサポートしていますか?
はい、Gコードコマンドをサポートしています。マザーボードのファームウェアはGRBLと互換性があります。
Z 軸は、約 30 ~ 35 g のペイロード (直径 10 mm、長さ 5 cm の固体鋼プローブなど) でスムーズに持ち上げたり押したりできますか?
はい、可能です。この機械は最大200グラム、最大直径15mmまでの荷重に対応しています。
If it's possible at all to change the setting for how much the pens can be raised/lowered?
The code limits the height of Z-axis in default, you can adjust the following settings as images to get more flexible.
1.idraw_deps>idraw2_0internal>idraw.py
Adjust the height from 10 to the height you expected like 30 on self.options.pen_pos_up and self.options.pen_pos_down.
2. idraw2_0.inx
Adjust the max="10.0" to the height you like on <param name="pen_pos_down" type="float" min="0.1" max="10.0" _gui-text="Pen height:DOWN, (mm):">5.0</param>
